Transmission Jack 500 kg

£94.99
|
Delivery Time 6-9 working days
OUT OF STOCK
SKU
4260551586675
Product Image

EASY HANDLING
No more tedious lifting! Benefit from the integrated hydraulics of the AREBOS gear jack. Step on the pedal to build up pressure in the gear jack and pump the gripping claw upwards.
When the job is done, you can easily release the pressure via the valve and the claw lowers again.

Product Image 2

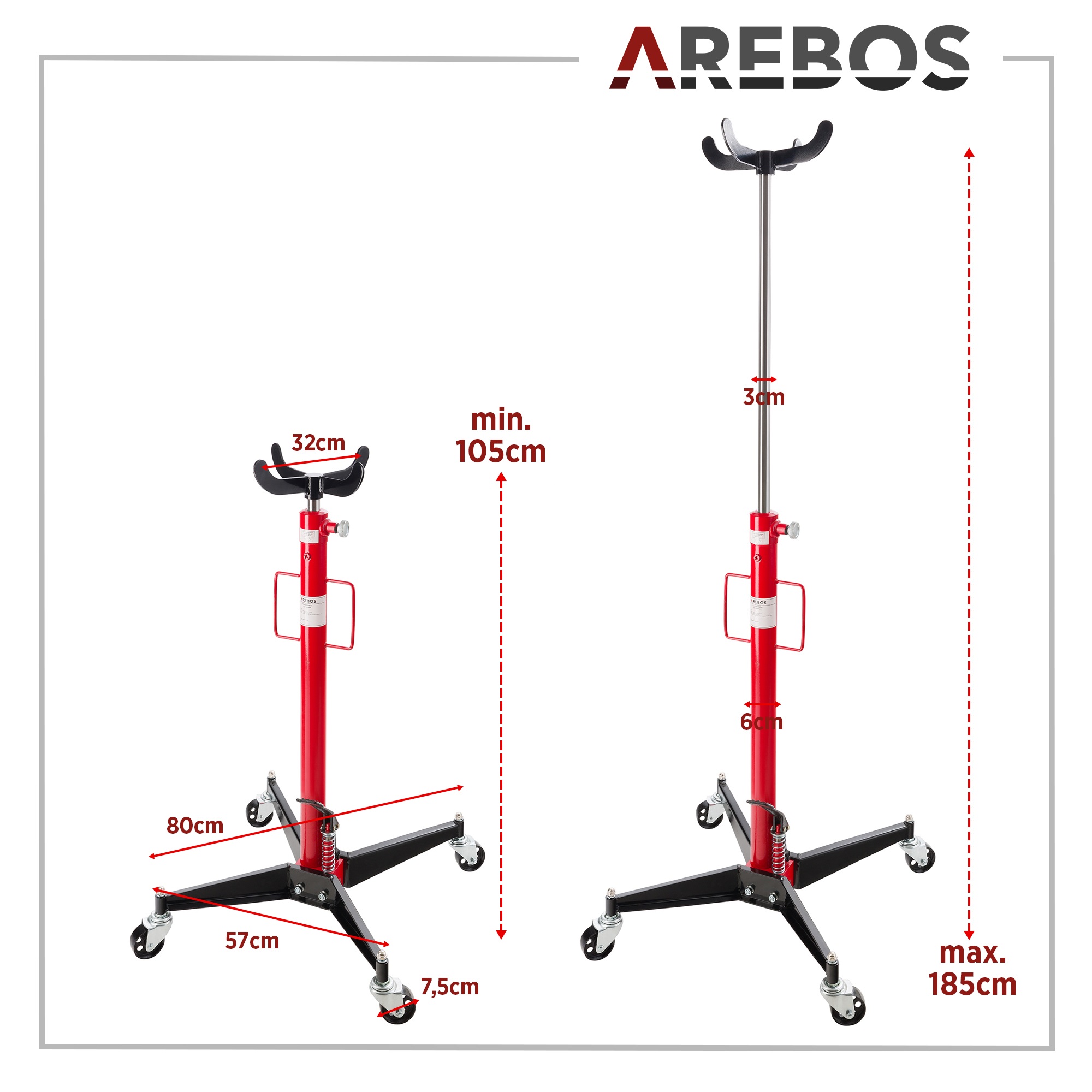

ADJUSTABLE HEIGHT & LOADABLE
An adjustable height is adjustable between 105 and 185 cm depending on the type of work you want to do.
The load capacity of half a tonne makes our product stand out as one of the best in its class.

Product Image 3

MANOEUVRING MADE EASY
The wide wheelbase of the gear jack ensures stability when lifting and manoeuvring heavy loads. The castors have ball bearings and are particularly stable with a diameter of 75 mm.

Product Image 4

A PRACTICAL HELPER
The side-mounted handles make it easy to transport the gear jack. Together with its light weight of 23.5 kg, this makes it convenient to use anywhere on the move. With the hand crank, you can regulate the jack manually particularly finely and lower it gently in steps. The dimensions of the motorised jack are 57 × 57 × 110 cm.

Product Image 5

COMPARISON WINNER

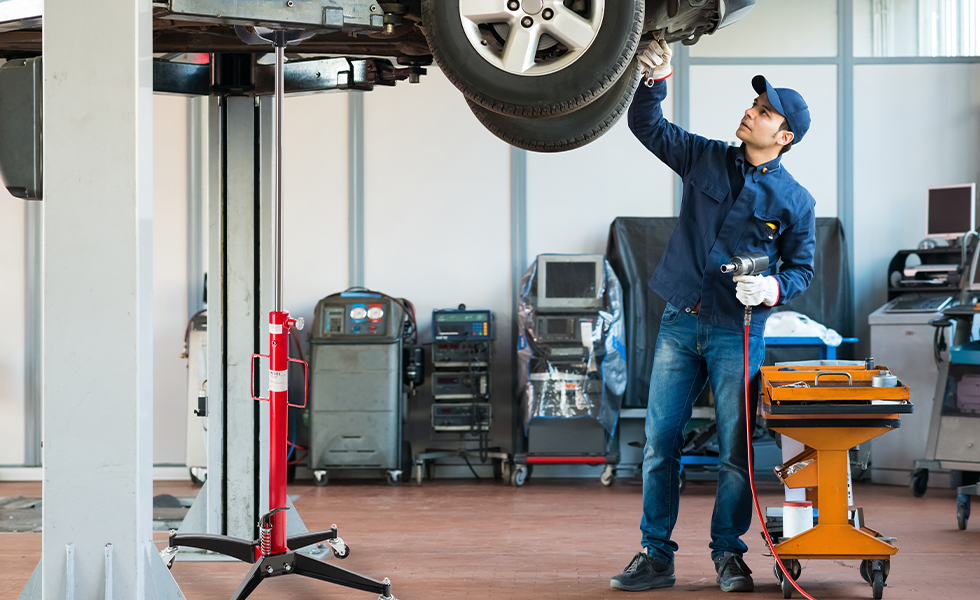

The AREBOS gear jack was chosen by our customers as the comparative winner in terms of quality and price. Convince yourself of the great quality and workmanship of our gear jack. Thanks to the hydraulic cylinder, it is ideal for installing and removing gearboxes and other engine parts, as well as for many service and maintenance tasks.

Product Image 6

Highlights at a glance:
  • Lifting capacity of 0.5 T
  • Adjustable height between 105 and 185 cm
  • Hydraulic lifting by foot pedal
  • Lowering by handwheel
  • Lowering speed can be finely adjusted
  • With 4 swivel castors for easy manoeuvring and handles
  • Rotatable pick-up plate

SKU
4260551586675
Weight
2,835.00 kgs
Color
Red
Delivery Scope

1x gear jack with rollers

1x instruction manual

Relevance of Dangerous Goods
No
Equipment
  • Transmission jack with rolls
Special Features
  • Lifting capacity of 0.5 T
  • Adjustable height between 105 and 185 cm
  • Hydraulic lifting by foot pedal
  • Lowering by handwheel
  • Lowering speed can be finely adjusted
  • With 4 swivel castors for easy manoeuvring and handles
  • Rotatable pick-up plate
Suitability Area
Suitable for Indoor and Outdoor
Type of Wheels
Steering Wheels
Properties Wheels
With ball bearings
Brand
Arebos
Diameter Load Rollers
75 mm
Height
110 cm
Length
57 cm
Lifting Height Max.
185 cm
Lifting Height Min.
105 cm
Material
Werkzeugstahl
Material Frame
Werkzeugstahl
Max. Load
500 kg
Model Name
AR-HE-GTHB05T
Number of Packages
1
Number of Steering Wheels
4
Number of Swivel Castors
4
Number of Tires
4
Outlet Cross
Yes
Rotating Plate Rotatable
Yes
Stand Width
80 cm
Tire Diameter
75 mm
Total Height
185 cm
Type of Drive Stroke
Hydraulic foot pump
Width
57 cm
Product Family
Transmission Jack
