Nuasol Photovoltaic Tile Roof Assembly Set- 2 Module
£80.99
*incl. % VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023114660
The preparation
1: Fix the roof hooks underneath the profile 2: Fix the end clips on the ends 3: Set the end caps

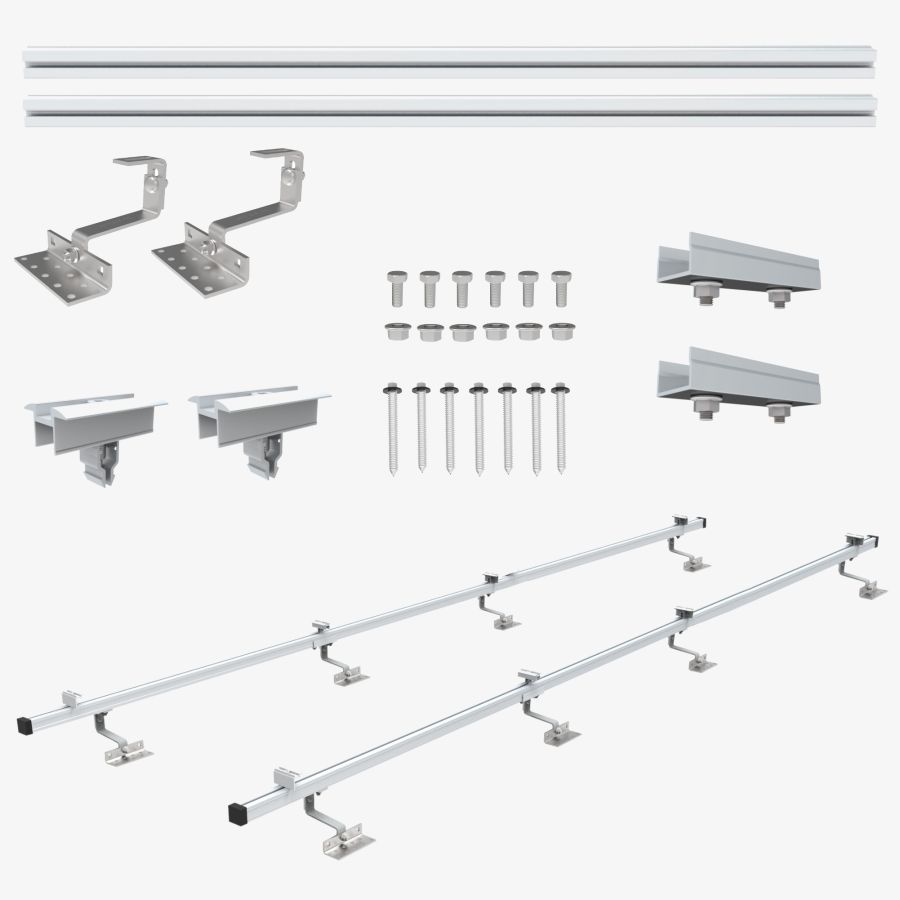

Everything included!
This comprehensive roof mounting set for solar modules contains all the components needed to mount a solar module on the roof of your house.
Simple installation
1: Prepare profiles 2: Lift roof tiles 3: Screw on roof hooks 3: Hook in solar modules 4: Tighten end clamps.
Suitable for solar modules with a height of 35 mm!
Details
- Dimensions profile: 1230 x 40 x 40 mm total length 2460 mm
- Dimensions connection: 120 x 45,5 x 25 mm
- Dimensions end clamp: 70 x 34 x 28.6 mm
- Dimensions end cap: 43 x 20 x 43 mm
Screw set
You simply fasten the roof hooks with the 18 stainless steel wood screws under the tiles. The solar module is attached to the aluminium profile with the clamps.
Aluminium profile
The aluminium profile, made of high-quality AL5005-T5, impresses with its weather resistance and provides space for solar panels with a width of up to 1230 mm.
Roof hooks
Our weatherproof stainless steel Z-brackets are completely pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, fastening rails and for holding photovoltaic modules or solar systems.
NuaFix roof hooks in detail
- Material: Stainless steel (SUS 304) | Flat steel hook: 60 x 30 x 5 mm
- Length of hook inside: 115 mm | Dimensions of base plate: 140 x 54 x 5 mm
- Mounting holes: 9 x 9 mm offset | Height adjustment of base plate: 44-47 mm
- Height adjustability flat steel hook: 60-92 mm | Slotted hole measurement: 45 x 11 mm
- Height adjustable overall: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm | Fitting screw: M10x25 A2 stainless steel
